粉末噴涂設配系統

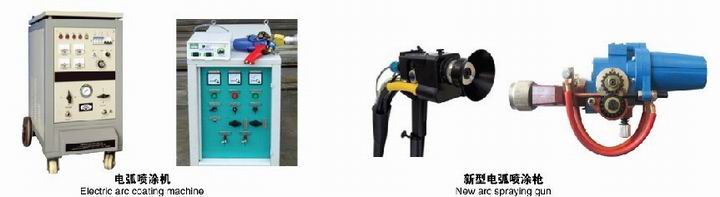

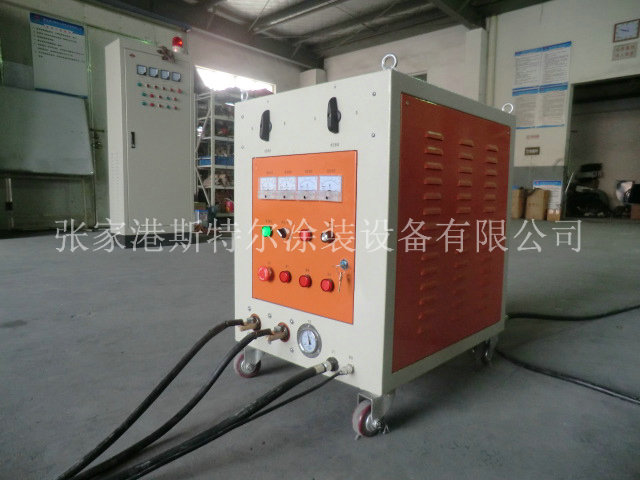

熱靜電粉末噴涂設施設備（噴鋅機，噴鋁機，噴鋅鈦鎂鋁合金屬機）產品

Thermal spraying equipment (spraying zinc machine, spraying aluminum machine, spraying  injection machine spraying zinc alloy machine) series

·熱靜電粉末靜電涂裝產品系列步驟：以某一熱媒將靜電粉末靜電涂裝用料（線纜或粉材）電加熱，吸熱的用料建成熔融或半熔融方式的水分子，等水分子以縮短新鮮空氣為和動力以千萬的速度快震蕩并磨合在基人體面上方，建成具備著千萬形態的靜電粉末靜電涂裝層。

·以能提供熱媒的不一樣，可以分成助燃法和電熱器法。前面的涉及到助燃烈焰噴塑工藝、爆款噴塑工藝及高速的烈焰噴塑工藝（HVOF）；后面例如電弧放電靜電噴漆制作工藝及等陰陽鐵鐵離子靜電噴漆制作工藝（又分過熱蒸汽等陰陽鐵鐵離子靜電噴漆制作工藝與水穩等陰陽鐵鐵離子靜電噴漆制作工藝）。靜電噴漆制作工藝制作工藝對涂覆生產關鍵不良影響的是靜電噴漆制作工藝室溫因素（嚴要求的說，是溶滴波動基豬體面時的室溫因素）和溶滴波動外層的高速度。

·斯特爾熱粉末噴涂工藝料程序常見用作塔桿、燈桿、橋面、水閘們、油船等結構的件大大小高效防水及造紙助劑烘缸、打印輥、曲軸等軸類的表明受到磨損的粉末噴涂工藝料修護，還常用作電容器、電瓷行業領域的電極片粉末噴涂工藝料等。

·Thermal spraying series process: Add some heat source and to heat up the spraying materials(Wire or powder materials), heated material form melting or half melt condition of particles, These particles are power by compressed, to certain speed for the impact and deposition in the matrix surface, form a spray coating with some characteristics.

·To the different provide between heat source it can be divided into burning method and heating method. The former includes combustion flame spraying, explosion spraying and the flame spraying (HVOF); The latter include arc spraying and plasma spraying (is divided into atmospheric plasma spraying and plasma spraying water stability). Spraying process have an important impact on the coating is that spraying temperature (Strict said, it is the temperature of dissolve drops the matrix surface of the impact) and dissolve the speed of the impact drops surface.

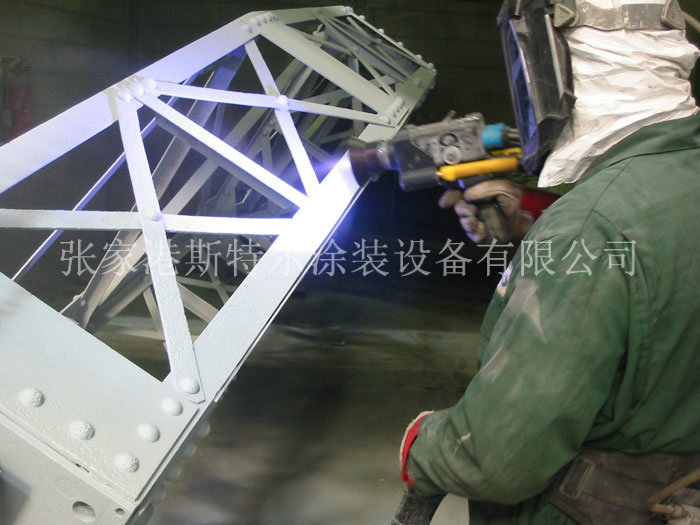

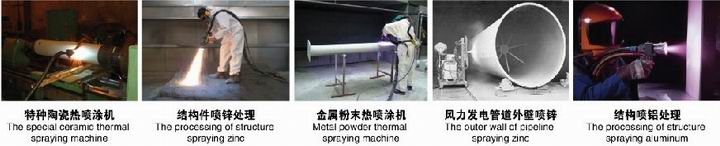

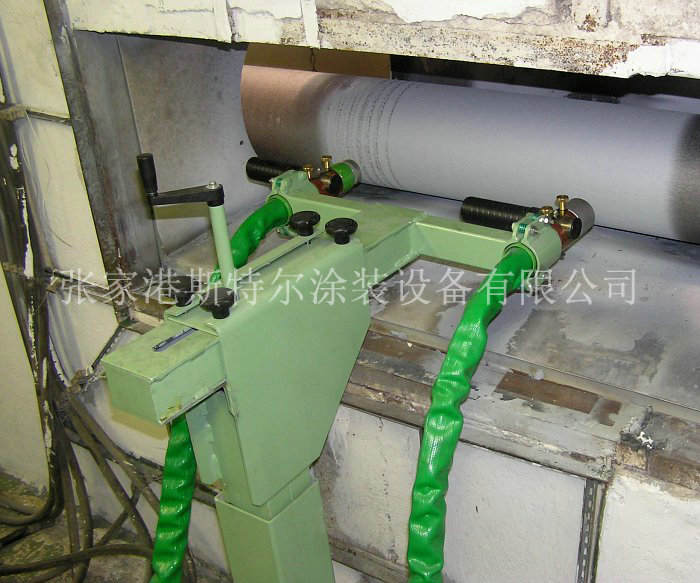

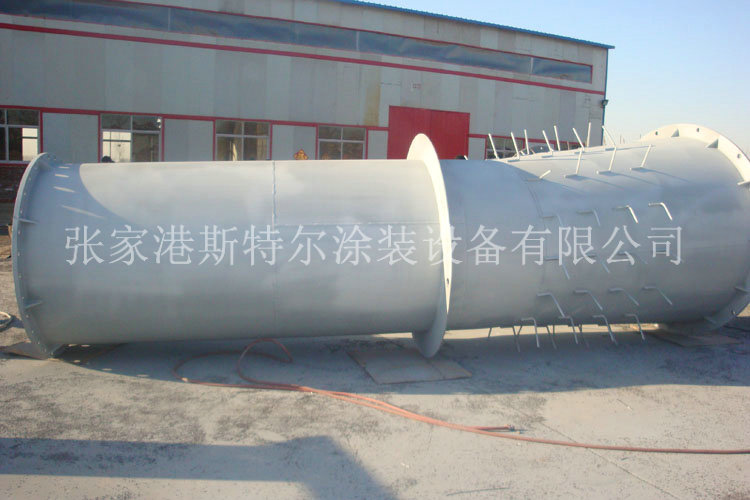

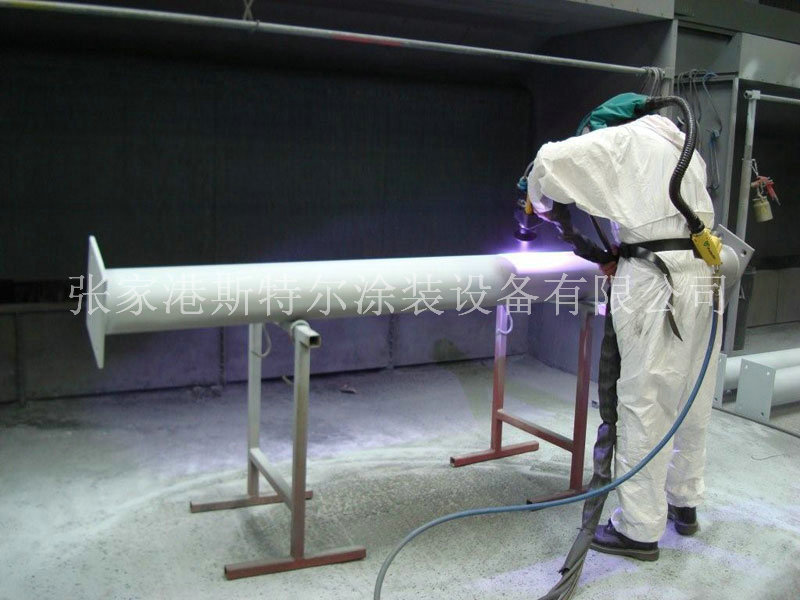

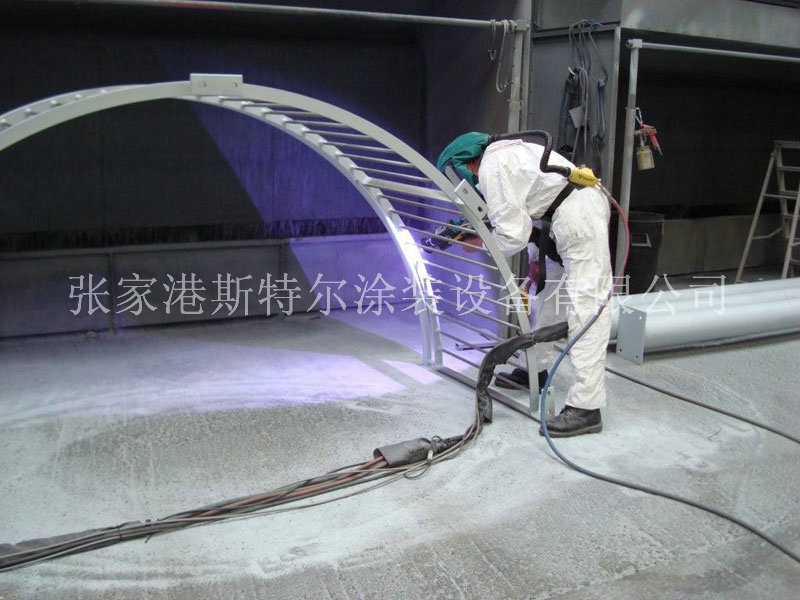

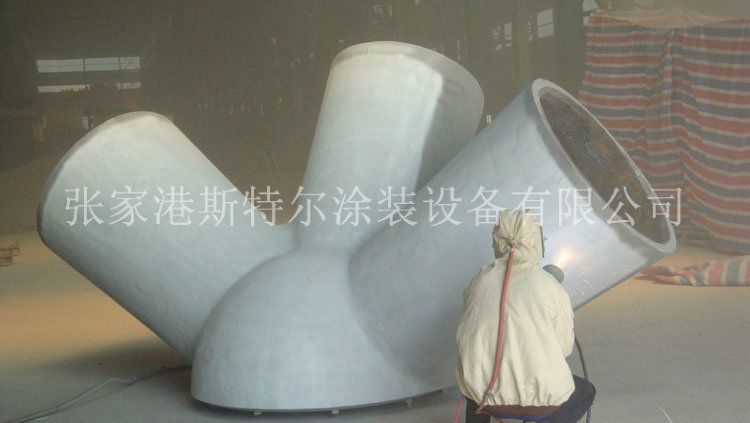

·Stel hot spraying System, which is used for light pole, Bridges, tower, the locks, shipbuilding and other structural long-term anti-corrosion and paper dryer, printing roll, crankshaft etc of workpiece surface wear spraying repair, also applies to capacitor, electroceramics electrode coating industry.

◆金屬涂層用途 Coating function

遵循原則法國F.N.LONGO對熱噴塑涂覆的分類別的辦法，涂覆按作用可氛圍：

1、耐變形損金屬鍍層。比如抗黏住變形、外層困倦變形金屬鍍層和耐沖濁金屬鍍層。這之中一些情況發生還會有抗低溫制冷的效果（<538C）摩擦和抗較高溫度（538～843C）磨損情況涂覆之分。

2、耐熱抗脫色金屬金屬涂層。此種金屬金屬涂層這之中包括持續高溫全過程（這之中有脫色熱場、侵蝕性有機廢氣氣體、超出843℃的沖蝕及熱障）和熔融合金金屬過程中 （至少有熔融鋅、熔融鋁、熔融鐵和鋼、熔融銅）所軟件應用的涂膜。

3、抗時尚和浸漬銹蝕涂覆。時尚銹蝕其中包含化學上的工業氣體、鹽性氣體、田野氣體等可能會導致的銹蝕；浸漬銹蝕其中包含食用惠陽、非食用惠陽、熱惠陽、蒸餾水、化學上的和面制品制造等可能會導致的銹蝕。

4、電導和阻值涂覆。這種涂覆用以電導、阻值和屏避。

5、還原圖片尺寸納米納米涂層。這納米納米涂層用以鐵基（可鉆削與可銑削的冷軋鋼和耐蝕鋼）和有色板塊塑料（鎳、鈷、銅、鋁、鈦及我們的耐熱合金）材質。

6、物理零配件開距管理涂覆。此種涂覆可磨。

7、耐巧妙化學上反應耐侵蝕表層。巧妙化學上反應耐侵蝕也包括多種多樣酸、堿、鹽，多種多樣三聚氰胺樹脂物和多種多樣巧妙巧妙化學上反應媒介的耐侵蝕。

Coating can be divided in function according to the US F.N.LONGO of method that the classified method of thermal spraying coating.

1. Wear resistance coating. Including resistance to stick with wear, wear coating surface fatigue and resistance to blunt turbidity coating. Some of them have difference such as fight microtherm wear(<538C) and high temperature resisting wear coating(538~843C).

2. Heat resistant antioxidant coating. This coating process application of coatings including high temperature( There are oxidation atmosphere, corrosive gas, higher than 843℃ of erosion and thermal barrier) and molten metal process(There are melting molten aluminum, zinc, iron and steel, melting molten copper).

3. Atmospheric corrosion resistance and dipping coating. Atmospheric corrosion caused by corrosion including industrial atmosphere, atmosphere, atmosphere of salt field, etc; Dipping corrosion caused by corrosion including drinking water, the drinking water, hot water, salt water, chemical and food processing, etc.

4. Conductivity and resistance coating.The coating used for electrical conduction, resistance and shielding.

5. Restore size coating. The coating used for some products made by iron (Carbon steel and corrosion resistant steel that can but cutting and grinding) and non-ferrous metal (Nickel, cobalt, copper, aluminum, titanium and other alloy).

6. Mechanical components clearance control coating.The coating can be ground.
