管道外壁自動噴砂機
◆可用范圍內 Applicable scope
管類鋁件,如:管材、螺紋鋼、羅桿、羅桿、超大圓錐形、圓柱形類、圓錐形型工件的;使用雙槍(可按耍求多槍)及颶風式安裝除塵設備器和光電自感應的功能,從而提高了研發學習效率及盡可能的縮短了搶修率。 (此機器需計劃)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆基本科技叁數 Main technical parameters
產品材質 Model |

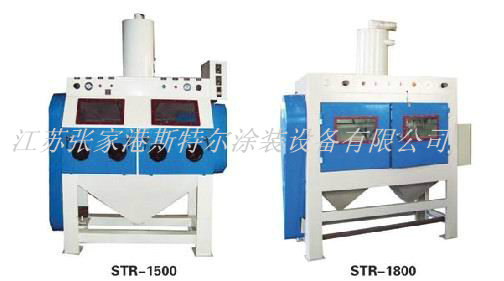

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
運作艙規格 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
服務器尺寸大小 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
收縮氣氛源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電源線 Power |
220v 50Hz |
220v 50Hz |
變頻式三相電機調節器 Governor |
250W×2 |
250W×2 |
分離器馬達 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
脫離器功率 Air separator |
35m3/min |
35m3/min |
電腦容量 Machine weight |
900kg |
900kg |
