無塵自動循環回收噴砂機系列

◆產品特征 Product features（請從上到下瀏覽訪問有大量量案例分析像片供考慮）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”廠區室內空氣煤塵環衛標準規定。砂料、煤塵電腦自動收購、分離出來、重復選擇，業務現場圖清潔無煤塵的污染。機壞保設計方案，盡可能減少了工友的勞動力比強度和功課區域環境要裝除塵器原理平衡裝置，可自行清掉吸附芯塵埃。內設分水吸附器。可對壓縮的新鮮空氣做出多次灰色收入提取。自行送料，將吸砂頭導入砂料中，啟動的真空箱泵系統將自行送料。PLC可編序操作（配搭），料位報警實用功能實用功能(選裝)。包括調壓旋轉開關、除塵器原理旋鈕。安全穩定的氣控平衡裝置與研磨材料閥。事情表面積20-70米，表層凈化處理分類達Sa2.5-3級。配制平安防滲水交流電壓家用插座電源開關充電插座，簡單快速進行操作的。配制保持交流電壓飛防家用插座電源開關充電插座簡單快速進行操作的。個性美觀度的防水保持蓋板與電氣操縱箱。保養與后期的維修保養十分簡單快速。車式腔體空間結構，防雨布防水，走動簡單快速。腔體門邊采取快速門瑣連接方式，組裝簡單快速。車把電源開關保持（電氣操縱DC24V）。一機三用，都具有休館式、化學工業吸砂器、優質型三大機器設備的功效。噴砂服務器用于異常設定回路開關，運行各個壓力都在0.2Kpa-0.8Kpa範圍內隨便調試，可實現有差異鋁件的噴砂工藝技術讓。利用範圍：除銹處理、除面漆、焊接處理（涵蓋不銹鋼304材料對接焊縫基本相關的去黑、去焊渣工作）去振紋、飛邊、硫化皮、不銹鋼304材料，型材外表的高貴典雅型亞光工作（耐污性好些、可遮住刮破）、去混疑土、石雕外表污圬等工作。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主耍能力因素 Main technical parameters

機械款型 Model	STR-B型無塵自動循環回收式噴砂機
作業電源適配器 Work power	380V 50HZ
氣流壓差 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
變頻電動機輸出 Motor power	4kw
辦公質量 Work efficiency	6-10m2
的工作圓的半徑 Work radius	10m 可依照要拉長，到底咨詢了解。qq客服
工作任務結構 Work form	自主重復回收利用Automatic cycle recovery
請理檔次 Clean level	Sa2-3
模糊度 Roughness	60μm上下
載重量 Weight	260kg
外貌的尺寸 Shape dimension	1380×830×1700mm
砂料尺寸規格 Sand material specifications	20-100#以上內容（1.0mm-0.04mm）

◆實用規模 Applicable scope

1.節能減排標準要求高且無一點除塵處理裝置的在日常生活中；

2.外理平衡等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

安全使用面積：防銹、除油柒焊接縫工作去飛邊、飛邊、脫色皮不銹鋼板、鋁門窗面的典雅型亞光治理（耐污性最好、可蓋住劃破）去瀝青商混土、石雕外壁污圬等治理。

（中應數據可參考價值A型或呼叫我總部）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 企業產品特色 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已收縮，重要性即是便宜野外進行可移動便宜，大大的影響了勞動課密度，或者工作能力在中國國內同行型設備方便；得見許多玩家的完全一致被認可，并都已經得見了普遍的精準投放和操作！（重要材質可參看A型或垂詢我集團公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

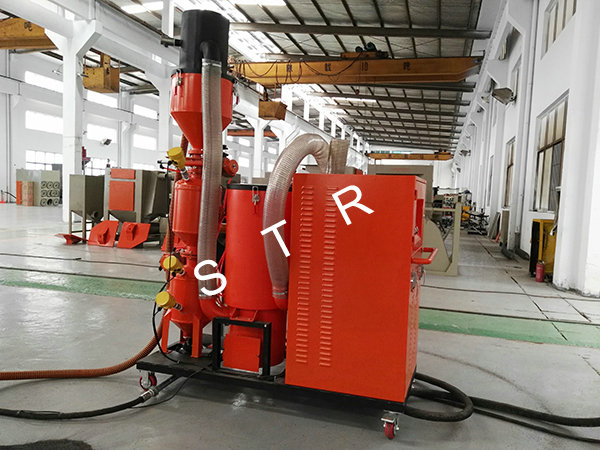

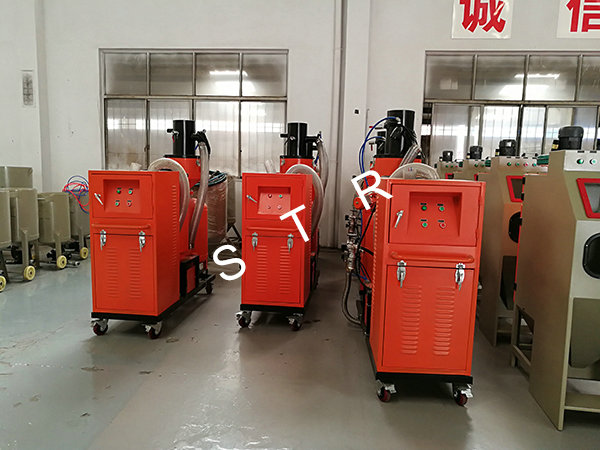

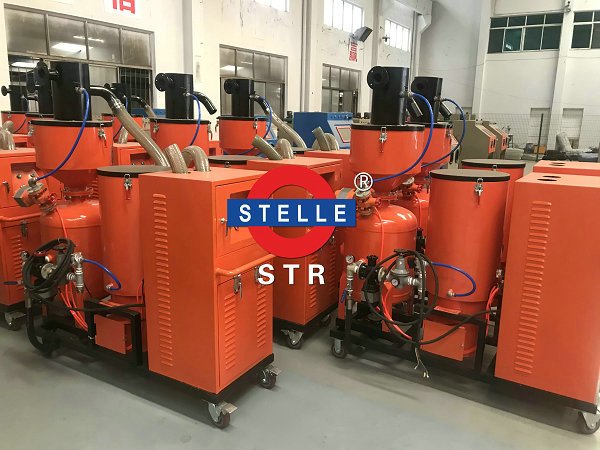

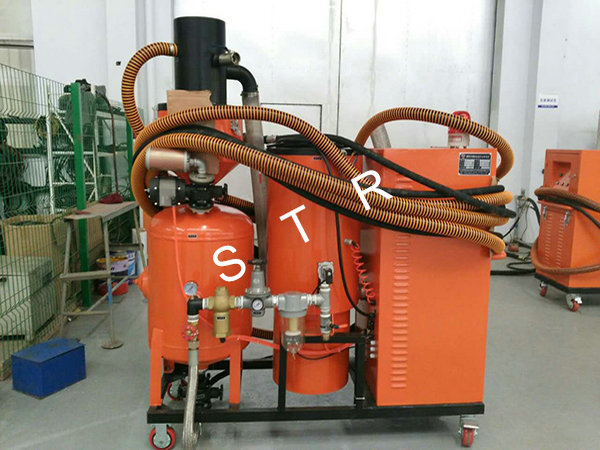

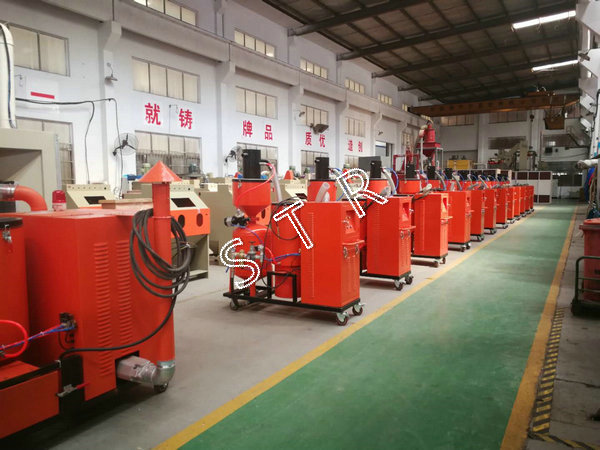

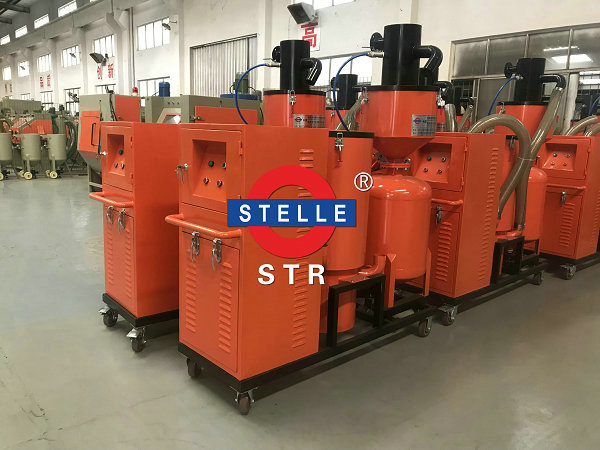

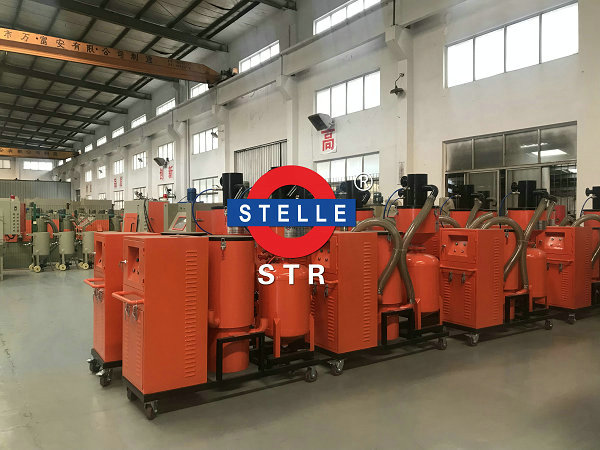

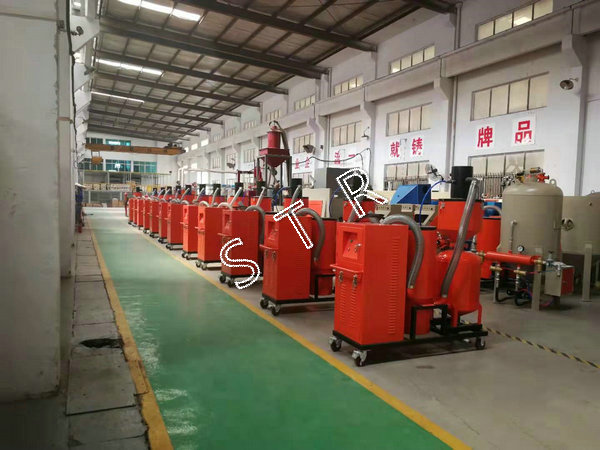

部份無塵自動循環環保型噴砂機案例:
